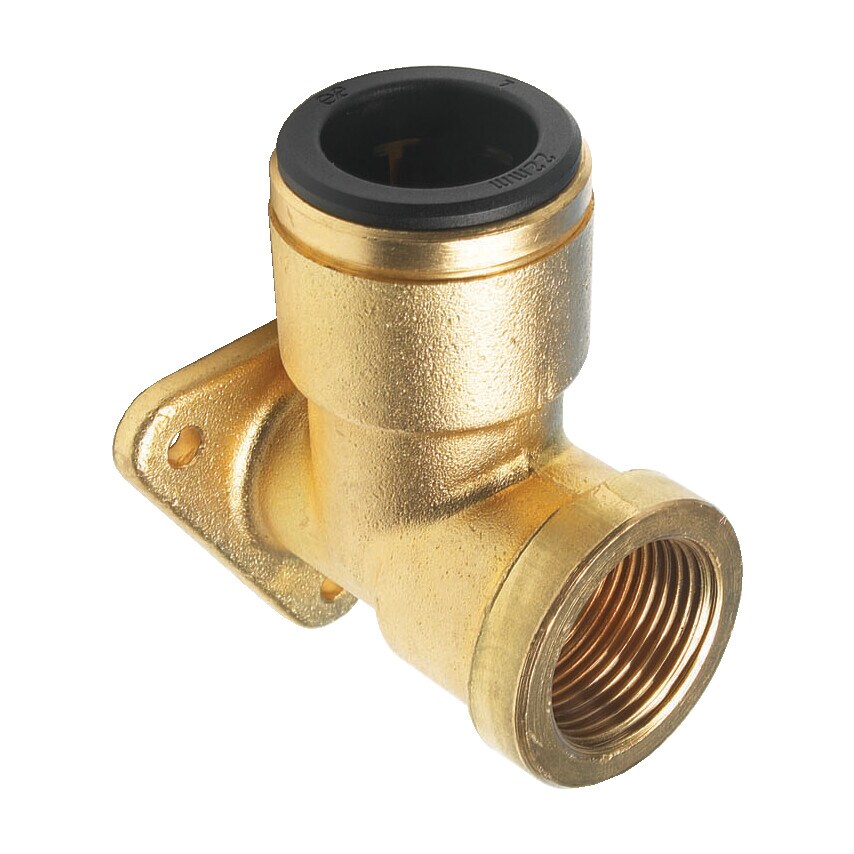

Name: John Guest 22MM X 3/4" BSP Ring Main Brass Wing Back Elbow
Brand: John Guest
SKU: ZT1065175X
Price: 22.99 GBP
Availability: InStock
Rating: 5 (4 reviews)

SearchPage-ViewMode

LIST

ProductPage_Bundle

tx_bundles

Search-Engine

Vespa_gemma

ProductPage_NewDesign

PaymentMethod-ApplePay

show

Recommendations_withStrategies

test

ProductPage_Video

Header-AddToBasket

Dropdown

AddToBasketDropdown_Recommendations

Search_Results_Limit

Timer-Countdown-on-Product-Family-Page

Stock_Availability_Message

hide

Additional Features

MFR Part No.

Operating Temperature Range

Operating Pressure

Body Material

Thread (BSP)

Product Type

Pipe Outer Diameter

Outside Diameter A

Thread Size A

Diameter

Maximum Working Pressure

This fitting is made of the following components:-

The body is produced in brass
'O'Rings are nitrile rubber
The collet is produced in acetal copolymer with stainless steel teeth

These Brass Wingback Elbows are designed to allow the user to join, modify or extend a  malleable/galvanised from/to plastic piping. Manufactured from brass with a durable rubber O-ring, the product is suited for use with John Guest®'s push-fit technology ststem.

Features and Benefits
• Push-fit technology makes the product quick and easy to install as well as move around if needed
• Allows for a quick disconnection without the need for tools to reduce downtime
• Quick push-fit system makes a system easy to alter or extend
• Manufactured from durable brass which is also resistant to corrosion for overall product longevity
• Push-fit system makes for reduced maintenance and installation times

Typical Applications
• Plumbing
• Engineering

Notes
• Working Temperature Range
• Minimum Working Temperature -20°C
• Maximum Working Temperature +70°C
• Working Pressure
• Temperature: +23°C. Pressure: 10bar
• Temperature: +70°C. Pressure: 7bar
• Tolerances
• Size: 12mm to 28mm OD. Tolerance: +0.05 to -0.10mm OD
• Maximum Torque Values
• Size: 3/8in. Plastic threads: 3.0Nm. Metal threads: N/A
• Size: 1/2in. Plastic threads: 3.0Nm. Metal threads: 4.0Nm
• Size: 3/4in. Plastic threads: 4.0Nm. Metal threads: 5.0Nm
• Size: 1in. Plastic threads: N/A. Metal threads: N/A

22MM X 3/4" BSP Ring Main Brass Wing Back Elbow
