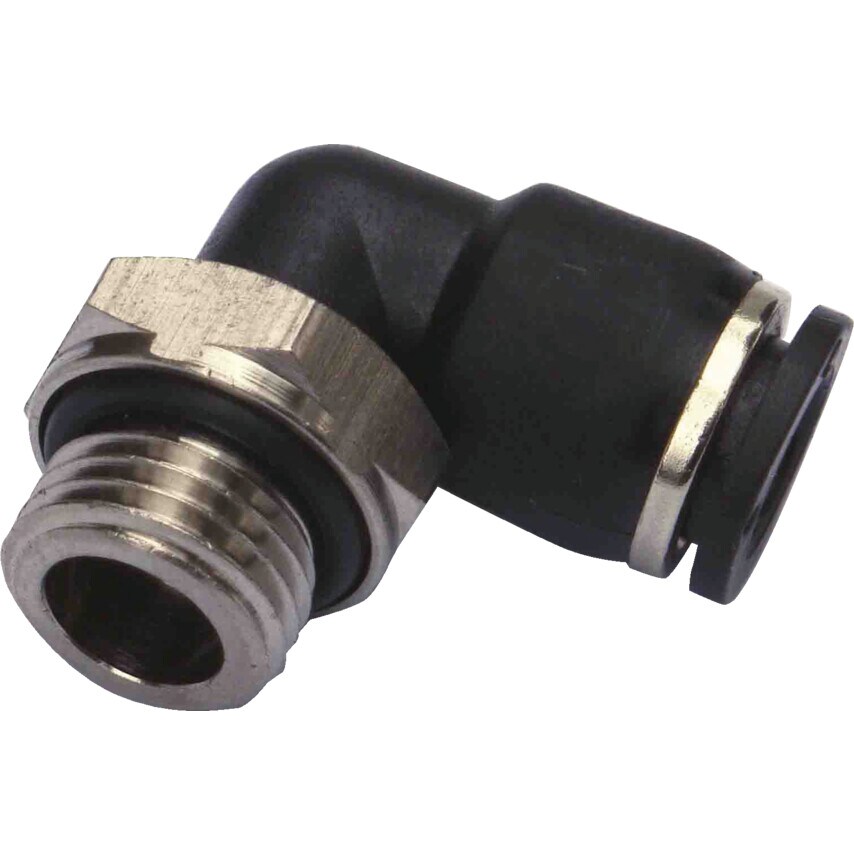

KEC4-2MP Ken-Fit Elbow Connector 4 MM - G1/4 M/P
| Quantity | Price | Discount |
|---|---|---|
| 1 - 9 | £4.55 | 0% |
| 10 - 19 | £4.37 | 4% |
| 20 - 49 | £4.19 | 8% |
| 50 - 99 | £4.00 | 12% |
| 100 + | £3.82 | 16% |
Product Description
Elbow Connector to Male Parallel
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Quick and simple tube insertion. Compact lightweight design with a well proven tube retaining system. Tapered threads have a re-usable thread seal and parallel threads have a rubber washer. Main body manufactured from nickel plated brass, acetal resin, PBT with a stainless steel retaining ring, nitrile tube seal and acetal resin tube release collar.
Pressure range: -0.9bar min to +10bar max. Temp range: -20°C min to +70°C max. Tube suitability: Nylon, polyurethane.
Specifications
EAN
5036140105188
Surface Finish
Nickel-Plated
Thread Sizes Male
1/4in
Operating Temperature Range
-20°C to +70°C°
Connection Type
Tube x BSPP
Size
4 - G1/4mm
Material
Brass
Tube Size
4mm
Maximum Operating Temperature
+70°C
Minimum Operating Temperature
-20°C
Tags:#BulkDiscount
